Chii Chinochengeta Parizvino kubva Kudonha kuburikidza neMotor Windings Yako?
Mukati memota yega yega yemagetsi, copper windings inotakura ikozvino. Vanogara mukati memitsetse yesimbi. Simbi inofambisa magetsi. Mhangura inofambisa magetsi. Kana vakabata, ikozvino inobuda. Zvikabudura zvemota. Kuita kunodonha. Pakupedzisira, injini inokundikana.

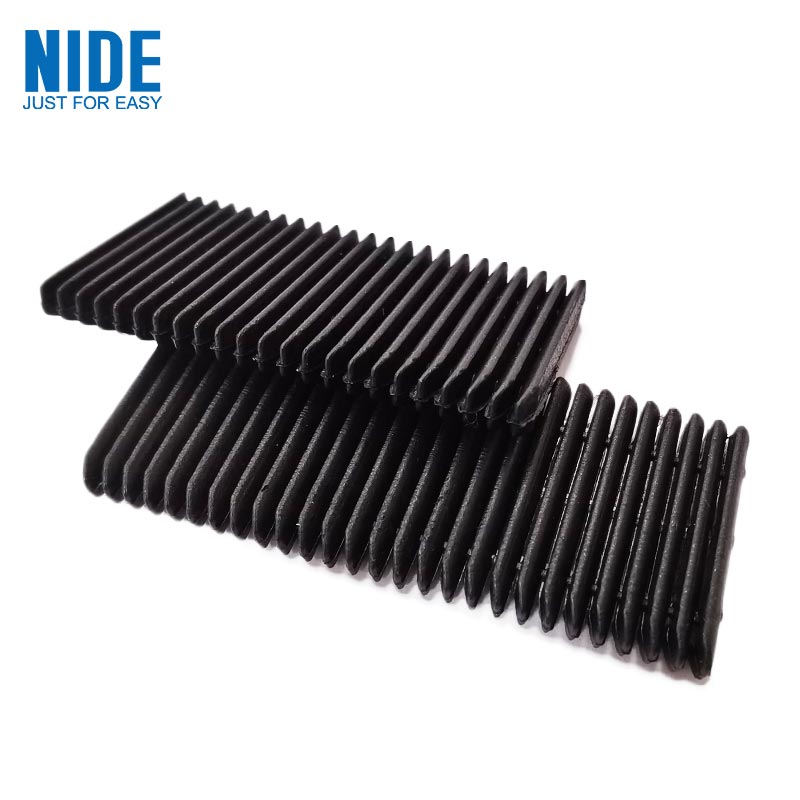

Chinhu chimwe chete chakamira pakati pemhangura nesimbi ipepa rakatetepa rezvinhu zvinonzibepa rekuvhara magetsi.
Hazvina kutaridzika zvakanyanya. Chikamu che millimeter ukobvu. Cheka kuita maumbirwo chaiwo. Svetera mukati meiyo slot mahwindi asati apinda. Asi pasina iyo, mota haishande.
Zvinoita Insulation Pepa Chaizvoizvo
Iyo stator musimboti inogadzirwa neakaturikidzana simbi laminations. Iyo mitsipa inoroverwa mavari. Injiniya anopinza chidimbu chebepa rekudzivirira mune yega yega slot, yakapetwa kuti iite mutsara madziro. Ipapo mamhepo anopinda mukati. Ipapo slot wedge inovhara kuvhura.
Bepa rine mabasa matatu. Kutanga, magetsi ekudzivirira - kumisa ikozvino kubva pakusvetuka kubva pamhangura kusvika kune simbi. Chechipiri, kuchengetedzwa kwemuchina - chengetedza ma windings pakatarisana nemicheto yakaoma yemarambi esimbi. Chechitatu, kutungamira kwekupisa - mamwe mamakisi anobatsira kuitisa kupisa kure nemhepo.
Kana bepa rikakundikana pane chimwe cheizvi, mota inotadza.
Mhuri Dzezvinhu
Haasi ese mapeji ekudzivirira akafanana. Mamota akasiyana anoda zvinhu zvakasiyana. Sarudzo inoenderana nekupisa, voltage, mechanical stress, uye mutengo.
Tafura iri pazasi inoratidza mhando dzinonyanya kushandiswa mukugadzira mota nhasi.
| Material code | Kuvaka | Tembiricha kirasi | Typical ukobvu | Zvakanakisa zve |
|---|---|---|---|---|
| DMD | Polyester film + polyester nonwoven mativi ese | Kirasi F (155°C) | 0.15 - 0.35 mm | General mota, maturusi emagetsi, midziyo yemumba |
| NMN | Polyester film + polyamide nonwoven mativi ese | Kirasi F (155°C) | 0.20 - 0.40 mm | Yepamusoro mechanicha simba, mota mota |
| NHN | Polyimide firimu + polyamide nonwoven mativi ese | Kirasi H (180°C) | 0.20 - 0.35 mm | High-tembiricha mota, EV traction motors |
| Pepa reAramid | 100% aramid fibers (Nomex rudzi) | Kirasi H (180°C) kusvika Kirasi C (220°C) | 0.18 - 0.50 mm | Kuvimbika kwepamusoro, kushandura, inorema-basa motors |
| Polyimide firimu | Single-layer polyimide (Kapton type) | Kirasi H (180°C) kusvika Kirasi C (220°C) | 0.05 - 0.15 mm | Thin-wall application, aerospace |
DMD ndiyo bhiza rekushanda. Iyo inovhara akawanda akajairwa mota nemutengo unonzwisisika. NMN inowedzera kuoma kwemagetsi. NHN inowedzera kupisa kupisa. Pepa reAramid rinowedzera ese ari maviri pamwe nepamusoro dielectric simba. Firimu rePolyimide nderenzvimbo dzakasimba.
Kunzwisisa Makirasi eTembiricha
Yese insulation material inotakura tembiricha rating. Uku hakusi kushambadzira. Iwo muganhu wakaedzwa.
| Kirasi | Maximum yekushanda tembiricha | Maitiro ekushandisa |
|---|---|---|
| Kirasi A | 105°C | Madhizaini ekare, akaderera-basa mota |
| Kirasi E | 120°C | Mafeni madiki, pombi |
| Kirasi B | 130°C | General chinangwa injini |
| Kirasi F | 155°C | Zvishandiso zvemagetsi, mota dzeindasitiri |
| Kirasi H | 180°C | EV mota, servo mota |
| Kirasi C | 220°C | High-performance, aerospace, basa rakanyanyisa |
Kusarudza kirasi isiri iyo kukanganisa kwakajairika. Kana mota ichimhanya pa140°C ichienderera, Kirasi B (130°C) ichakundikana. Kirasi F (155°C) ndiyo yakachengeteka sarudzo shoma.
Asi cherechedza: chiyero chekushisa chinoshanda kune kuenderera mberi kwekushanda. Tembiricha yepamusoro inogona kunge yakakwira. Mainjiniya akanaka anowedzera margin. Motokari inomhanya pa140°C inoenderera inofanira kuwana Class H insulation, kwete Kirasi F chete.
Makiyi Paramita: Zvinorehwa neSpecial Sheet Chaizvoizvo
Rinikuongorora insulation bepa, akati wandei tekinoroji paramita akakosha. Hezvino zvavanoreva.
Ukobvu.Yakayerwa mumamirimita. Yakajairika renji ndeye 0.15mm kusvika 0.40mm kune slot liners. Bepa rakakora rinopa yakakwira dielectric simba uye zvirinani kuchengetedzwa kwemichina. Pepa rakatetepa rinosiya imwe nzvimbo yemhangura, inowedzera mota simba density. The tradeoff inyanzvi kutonga.
Dielectric simba.Yakayerwa mu kilovolts pa millimeter. Izvi zvinokuudza kuti imhepo yakawanda sei iyo bepa rinogona kuvhara risati raputsika. Yakajairika kukosha kweDMD i5-8 kV ye0.2mm sheet. Yakakwirira iri nani, asi iyo chaiyo inodikanwa zvinoenderana nemota voltage. Kune mota ye400V EV, 3-5 kV yakakwana. Kune 800V masisitimu, 6-8 kV yakachengeteka.
Kusimba simba.Yakayerwa muNewtons pahupamhi hwe15mm. Izvi zvinokuudza kuti isimba rakawanda sei rekudhonza rinogona kutora bepa risati rabvaruka. Zvakakosha nekuti bepa rinopetwa uye rinopinzwa nemuchina. Mapepa asina kusimba misodzi panguva yegungano. Kuzorora kunotevera.
Elongation panguva yekuzorora.Percentage yekutamba isati yabvaruka. Pepa rinotambanudza 10-15% rinonyanya kuregerera panguva yekupeta. Brittle bepa rinotsemuka pamakona akapinza.
Edge misodzi kuramba.Yakayerwa muNewtons. Pepa rinopetwa. Mapeta anogadzira pfungwa dzekushushikana. Kana kumucheto kwemisodzi kuramba kwakadzikira, bepa rinotsemuka pamutsetse wekupetwa panguva yekuiswa.
Mutengesi akanaka anopa nhamba idzi pachitupa chezvinyorwa. Mutengesi murombo anoti "inosangana nezviyero zveindasitiri" pasina kupa maitiro chaiwo ebvunzo.
Nei EV Motors Yakasiyana
Mota dzemotokari dzemagetsi dzakachinja musika webepa rekuisa. Zvinodiwa zvakanyanya.
Kupisa kwepamusoro.EV mota dzinomhanya kupisa kupfuura maindasitiri mota. Kutonhora kwemvura kunobatsira, asi hotspots dzichiri kusvika 160-180°C. Kirasi H zvinhu (180 ° C) zvakajairwa. Vamwe vagadziri vari kuenda kuKirasi C (220°C) yekugadzira chizvarwa chinotevera.
Higher voltages.Ekutanga EV mota dzakamhanya pa300-400V. Masisitimu matsva anomhanya pa800V. Kuuya masisitimu anomhanya pa1200V kana kupfuura. Dielectric simba zvinodiwa zvakapetwa kaviri. Pepa raishandira 400V rinogona kunge risina kuchengetedzeka ku800V.
Kuratidzwa kwemafuta.Mazhinji EV mota anoshandisa oiri kutonhora nekuzora. Iyo insulation bepa inogara mumafuta iwayo. Zvimwe zvinhu zvinozvimba kana kushatisa muoiri. Polyimide-based mapepa anoita zvakanaka. Polyester-based mapepa anogona kunge ane zvisingakwanisi. Kumbira kuenderana nemafuta bvunzo data.
Automation.EV mota yekugadzira mitsetse inomhanya nekumhanya kukuru. Pepa rinodyiswa kubva mumipumburu, kucheka, kupetwa, uye kuisirwa otomatiki. Kuenderana kwezvinhu kunokosha. Ukobvu musiyano we ± 0.01mm unogona jam inoisa otomatiki.
Matambudziko Matatu Chaiwo Anoitika paMitsetse Yekugadzira
Theoretical material properties chinhu chimwe. Izvo zvinoenda zvakashata pauriri hwefekitari ndezvimwe.
Dambudziko rekutanga: pepa misodzi panguva yekupeta.Muchina uyu unopeta bepa kuita U-shape kurongedza slot. Kana bepa riine simba rekubvarura rakaderera, rinotsemuka pamutsetse. Mutsetse unomira. Mushandi anobvisa jamu. Kugadzirwa kunotangazve. Izvi zvinoitika kakawanda pakuchinja nezvinhu zvisina kunaka.
Dambudziko rechipiri: hukuru hwemapepa hunoshanduka nehunyoro.Pepa reAramid rinotora hunyoro kubva mumhepo. Muhunyoro hwepamusoro, inowedzera. Muhunyoro hwakaderera, hunoderera. Muchina wacho wakaenzana kune imwe saizi. Kana bepa richichinja saizi, chimiro chakapetwa chinoshanduka. Kupinza kunotadza. Vatengesi vakanaka vanotumira pepa mune hunyoro-hupupu hwekurongedza. Mafekitari akanaka anoichengeta mumakamuri anodzorwa nemamiriro ekunze.
Dambudziko rechitatu: kusvibiswa kwekunamatira.Rimwe bepa rekudzivirira rine kupisa-activated adhesive layer kune rimwe divi. Mushure mekuisa, kupisa kunosungira mapepa kumadziro e-slot. Kana iyo inonamira ichibuda panguva yekuchengetera kana kutamiswa, inonamira kumadhiraivha emuchina. Guruva rinounganidza. Alignment inodonha. Mushonga wacho wakachena kugadzira uye kwakakodzera kuburitsa liners.
Maitiro ekudoma Insulation Pepa nemazvo
Heino muenzaniso chaiwo weiyo EV mota traction drive.
| Parameter | Zvinodiwa |
|---|---|
| Material | NHN kana aramid bepa |
| Tembiricha kirasi | Kirasi H (180°C) zvishoma |
| Ukobvu | 0.25mm ± 0.02mm |
| Upamhi | Sekudhirowa (slot wide + 2x overhang) |
| Dielectric simba | ≥6 kV ye 0.25mm ukobvu |
| Kusimba simba | ≥150 N/15mm muchina nzira |
| Elongation | ≥10% |
| Kugarisana kwemafuta | Hapana kuzvimba kana delamination mushure memaawa 1000 mumhepo inotapurirana pa120°C |
| Packaging | Hunyoro-uchapupu, humidity chiratidzo chinosanganisirwa |
| Certification | UL94 V-0 kupisa moto, RoHS inoenderana |
Tumira izvi kune vatatu vatengesi. Enzanisa mishumo yebvunzo yavanopa. Bvunza nezve musiyano - batch kune batch, roll to roll. Mutengesi anopindura nedata ndiye wekuvimba naye.
Mitanhatu Mibvunzo Inobvunza Vatengi
Ini ndingashandisa bepa rimwechete rekudzivirira kune mota dzangu dzese?
Kwete kazhinji. Mota dzakasiyana dzinomhanya patembiricha dzakasiyana uye voltages. Kumisikidza pane chimwe chinhu kunorerutsa hesera asi kunokumanikidza kuti ushandise yakakwira-giredhi zvinhu pane zvinodiwa kune mamwe mota, ichiwedzera mutengo. Kana kuti unoshandisa yakaderera-giredhi zvinhu uye ngozi kukundikana. Zvirinani kukwanirisa zvinhu zviviri kana zvitatu wozvifananidza nemashandisirwo.
Ndeupi musiyano uripo pakati peNMN neNHN?
Mutsara wepakati. NMN inoshandisa polyester firimu. NHN inoshandisa polyimide firimu. Polyimide inoshingirira tembiricha yakakwira. Kune mota dziri pasi pe155°C, NMN yakanaka. Kwe 155-180 ° C, sarudza NHN. Musiyano wemutengo une mwero.
Ko bepa gobvu rinogara richireva kuti insulation iri nani here?
Kwete nguva dzose. Dielectric simba rinowedzera nekukora, asi mechanical fit inova yakaoma. Pepa gobvu rinotora nzvimbo mukati meiyo slot. Nzvimbo iyoyo ingadai yakatakura mhangura yakawanda. Vagadziri vemota vanotengeserana kubva kuhukobvu hwekudzivirira vachitarisana nemhangura yekuzadza. Pepa rakatetepa rinobvumira yakawanda mhangura, simba repamusoro, asi inoda zvirinani kudzora maitiro.
Ndeipi sherufu yehupenyu hwebepa rekudzivirira?
Zvinoenderana nekuchengetedza mamiriro. Mukutanga kurongedza, mamiriro ekunze-anodzorwa, aramid bepa rinotora makore. Polyester-based zvinhu zvinogona kushatisa nekukurumidza. Njodzi huru kunyura unyoro uye kuchembera kwekunamira. Kana bepa rakachengetwa kweanopfuura makore maviri, edza sampuli usati washandisa.
Ndinoziva sei kana bepa remutengesi richienderana?
Bvunza Cpk data pane ukobvu. A Cpk ye1.33 kana yepamusoro zvinoreva kuti maitiro anokwanisa. Ndokumbirawo batch-to-batch bvunzo mishumo. Kana mutengesi asingakwanisi kugadzira izvi, havasi kudzora maitiro avo.
Ko bepa rekudzivirira rinogona kushandiswazve here?
Yakawanda ndeye thermoset kana yakakwira-performance thermoplastic. Kudzokorora zvakare kwakaoma. Mamwe mapepa earamid anogona kudzoserwa, asi maitiro acho haawanikwe zvakanyanya. Indasitiri yakatarisana nekudzikisa marara mukucheka nekuisa, kwete pakudzokorora kwevatengi.
Chirevo pamusoro pekuenderana neSlot Wedges
Insulation bepamitsara slot madziro. Iyo slot wedge inovhara kuvhura. Vanofanira kushanda pamwechete.
Wedge inodzvanya pabepa panovhura slot. Kana iyo pepa yakanyanya kupfava, wedge ichachera mairi. Kana bepa racho ranyanya brittle, rinotsemuka pawedge yekuonana point.
Kune mota dzeEV, mainjiniya mazhinji anobatanidza pepa rearamid nema aramid wedges. Mhuri yemidziyo yakafanana, kuwedzera kwekushisa kwakafanana uye maitiro emuchina. Kune general motors, bepa reDMD rine girazi-fiber wedges musanganiswa wakapupurirwa.
Paunenge uchiodha kubva kumutengesi, tsanangura zvinhu zviviri pamwe chete. Mutengesi anogona ipapo kufananidza masystem system.
